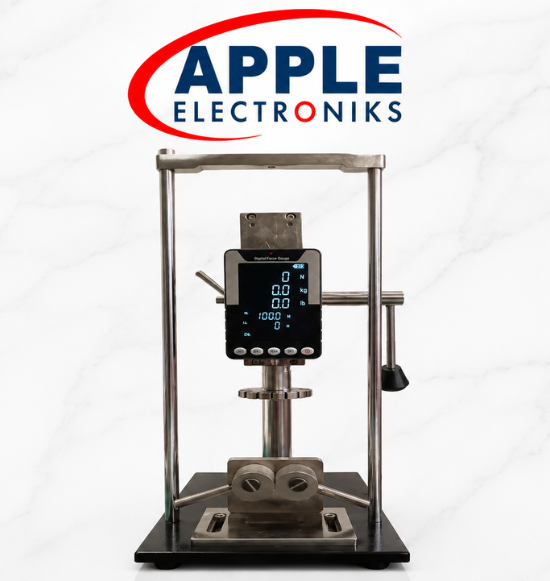

MFT1000M+ Manual Wire Crimp Pull Force Tester (Digital) – 1000N – Latest
The MFT1000M+ Manual Wire Crimp Pull Force Tester is a unique and economical digital instrument for tension and compression testing. Its stable, compact construction and convenient manual operation suit both production-floor quality checks and laboratory testing.
It is used for wire crimp, push-pull, peeling, breaking strength, adhesion testing, peel off, compression, and tensile testing of fabric, plastic, wire, crimp, yarn, strips, and many more materials. Digital force measurement displays maximum/peak pull strength and breaking force.
With a 1000N (100 kg) capacity and 0.5% F.S accuracy, the MFT1000M+ reads force in N, Kgf, and Lbf. Its simple hand-pressure operation, compatibility with various fixtures, and 200 mm travel with an optional 400 mm configuration make it a versatile benchtop force tester.
Specifications
Capacity
1000N (100 kg)
Accuracy
0.5% F.S
Force Units
N, Kgf, Lbf
Traveling Length
200mm / 400mm (Optional)
Weight
16 kg
Power Supply
220/110V, 50/60Hz
Dimensions (L × W × H)
450 × 400 × 650 mm
Key Features
Simple and hand pressure operation — unique, economic instrument with good stability, wide application range, and convenient usage for manual testing on production floor or in the laboratory
Compatible with various kinds of fixtures for wire crimp, push-pull, peeling, breaking strength, adhesion, peel off, compression, and tensile testing of fabric, plastic, wire, yarn, and strips
Compact design and simple construction for easy portability and installation on any workbench — no complex setup or installation required
Digital force measurement with peak hold — measures maximum/peak pull strength and breaking force displayed in N, Kgf, and Lbf with 0.5% F.S accuracy
Key Highlights
Multi-Application Force Testing
Covers wire crimp, push-pull, peel, adhesion, compression, and tensile testing on fabric, plastic, wire, crimp, yarn, strips, and more — all in one compact instrument.
Simple Hand Pressure Operation
Manual, tool-free operation with compatibility for various fixtures. Compact benchtop design is ideal for any laboratory or production floor with minimal space requirements.
Digital Peak Force Display
Measures and displays maximum/peak pull strength and breaking force in N, Kgf, and Lbf with 0.5% F.S accuracy — ensuring precise, reliable results for every test.
The MFT1000M+ Manual Wire Crimp Pull Force Tester is used for tension and compression testing across a wide range of applications: wire crimp testing, push-pull, peeling, breaking strength, adhesion testing, peel off, compression, and tensile testing of fabric, plastic, wire, crimp, yarn, strips, and many more materials.
The MFT1000M+ has a maximum force capacity of 1000N (equivalent to 100 kg) with an accuracy of 0.5% F.S (Full Scale). This makes it suitable for precise pull and compression force measurements across a wide variety of industrial and laboratory applications.
The MFT1000M+ digital force gauge displays force readings in three selectable units: N (Newtons), Kgf (kilogram-force), and Lbf (pound-force). The digital readout captures and holds the maximum/peak pull strength and breaking force for easy recording.
The standard traveling length of the MFT1000M+ is 200mm. An extended 400mm traveling length is available as an optional configuration for applications requiring a longer stroke, such as peel testing of longer specimens or multi-point crimp testing along wire lengths.
The MFT1000M+ uses simple hand-pressure operation for controlled manual tension and compression testing. Its compact design and straightforward construction make it convenient for routine benchtop testing without a motorized drive.
Yes. The MFT1000M+ is designed to be compatible with various kinds of fixtures and grips, making it highly versatile for different test types and specimen geometries. Whether testing wire crimp terminals, peel strips, fabric samples, or plastic components, appropriate fixtures can be mounted to suit the specific application.
The MFT1000M+ measures 450 × 400 × 650 mm (L × W × H) and weighs 16 kg, making it a compact benchtop unit. It operates on a 220V or 110V, 50/60Hz power supply.
The MFT1000M+ supports wire crimp, push-pull, peeling, breaking-strength, adhesion, peel-off, compression and tensile tests. With suitable fixtures, it can test fabric, plastic, wire, crimp terminals, yarn, strips and other compatible specimens.
